Name: 12 Microns Brass Casting Use Isostatic Graphite Block With1.85 G/cm3 High Density
Brand: Pingdingshan Oriental Carbon Co.,Ltd.
SKU: OCY-4
Price: 1 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Thermal Conductivity: 110-125W/mK

Porosity: 12-15%

Flexural Strength: 60 MPa

Coefficient Of Thermal Expansion: 5.2 X 10^-6 /K

Density: 1.85 G/cm3

Product Type: Graphite

Operating Temperature: Up To 3000°C

Application: Continuous Casting

Highlight:

1.85 g/cm3 Casting Graphite Block

12 Microns Casting Graphite Block

Isostatic Casting Graphite Block

Basic Infomation

Place of Origin: Pingdingshan, China

Brand Name: Oriental Carbon

Certification: ISO9001-2015

Model Number: OCY-4

Payment & Shipping Terms

Packaging Details: Plywoode cases

Delivery Time: 15-30 working days

Payment Terms: T/T

Supply Ability: 3000 TON/ Month

Gallery

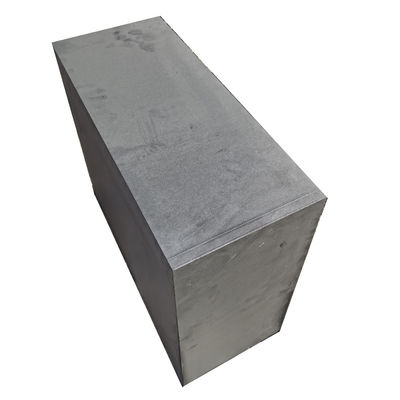

12 Microns Brass Casting Use Isostatic Graphite Block With1.85 G/cm3 High Density

Product Description

Isostatic Graphite has so many advantages compared with molded graphite or extruded graphite.Pingdingshan Oriental Carbon is winning our reputation wordwide because of High Quality product, Reasonable Price as well as considering after sales service.

Product name	OCY-4 Isostatic Graphite Block
Density	1.85 g/cc
Grain Size	12 um
Compress Strength	115 Mpa
Flexural Strength	55 Mpa
Electric Resistance	10-13 uΩ.m
Hardness	65 HSD

Advantages

1) Lower density and lighter weight compared with cooper materials.

2) Easier for the machining
3) Strong thermal shock resistance ability
4) Not easy to bend compared with cooper due to low thermal expansion
5) Fine grain size,good lubrication
6) High melting point,high temperature resistance,high anti-deformation ability

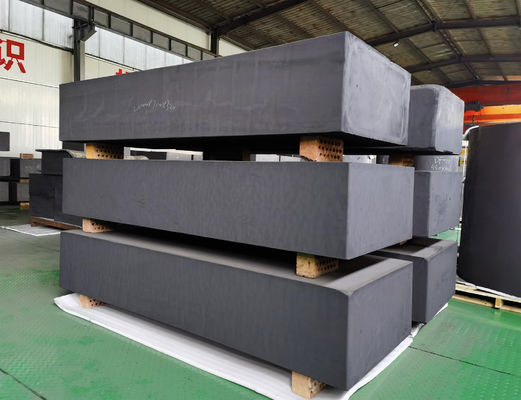

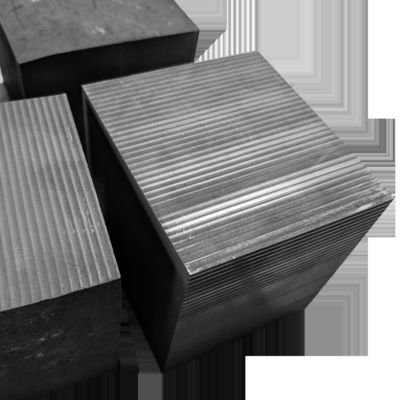

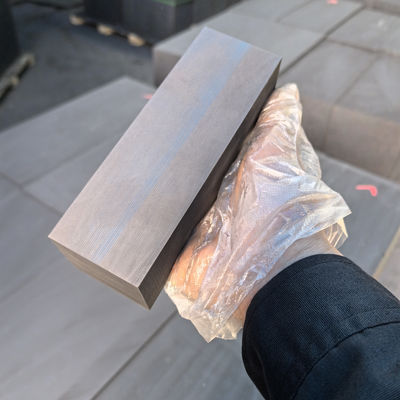

Detailed Images

Size Information

610510210/260	620520260/300	700350230	950650310	Grpahite Blocks
820420210/260/310	11501150290	1250600300	1300700320/350
1350800350	1400800260	1600800350	1650650350
2000700320	2200710540
φ130*280	φ130/140/150/160*500	φ160*650/900	φ180*850/900	Graphite Rods
φ200*900	φ220*900/1000	φ240*900	φ260*850/900
φ280*900	φ300*850/900	φ330*900	φ360/400/430*1000
φ460*1000/1050	φ500*1000/1050	φ550*1000/1100	φ600/650*1000
φ700*750	φ1100*700	Φ980/1100*900	φ1100*1100

Quality Control

Company Introduction

Founded in February 2006, Pingdingshan Oriental Carbon Co.,Ltd. is located in the advanced manufacturing development zone of ShilongDistrict, Pingdingshan City, Henan Province, with a registered capital of 119 million yuan, covering an area of 170,000 m2, and more than 400 employees. We have a wholly-owned subsidiary of Baofeng Xinxin carbon material Co., Ltd. On June 30,2023 Oriental Carbon was listed on the Beijing Stock Exchange,which becomes to be the first private enterprise to be listed on BSE.

Oriental Carbon in the future

Total investment of the new project of Oriental Carbon under-construction (2024) is1.08 billion CNY, new plantcovers an area of 120,000 m2 including a 75,000 m2newindustrial plant and a 60000m2 &10 megawatt rooftopsolar power system. In the future, we will follow the industry concept oftechnology-driven innovation,and strive to build a modern graphite production base which is digital, intelligentand low carbon.
