Name: High Density Isostatic Graphite Block For Copper Continuous Casting And Moulding
Brand: Pingdingshan Oriental Carbon Co.,Ltd.
SKU: OCY-4
Price: 1 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Thermal Conductivity: 110-125W/mK

Porosity: 12-15%

Flexural Strength: 60 MPa

Coefficient Of Thermal Expansion: 5.2 X 10^-6 /K

Density: 1.85 G/cm3

Product Type: Graphite

Operating Temperature: Up To 3000°C

Application: Continuous Casting

Highlight:

Moulding Isostatic Graphite Block

High Density Isostatic Graphite Block

Copper Continuous Casting Isostatic Graphite Block

Basic Infomation

Place of Origin: Pingdingshan, China

Brand Name: Oriental Carbon

Certification: ISO9001-2015

Model Number: OCY-4

Payment & Shipping Terms

Packaging Details: Plywoode cases

Delivery Time: 15-30 working days

Payment Terms: T/T

Supply Ability: 3000 TON/ Month

Gallery

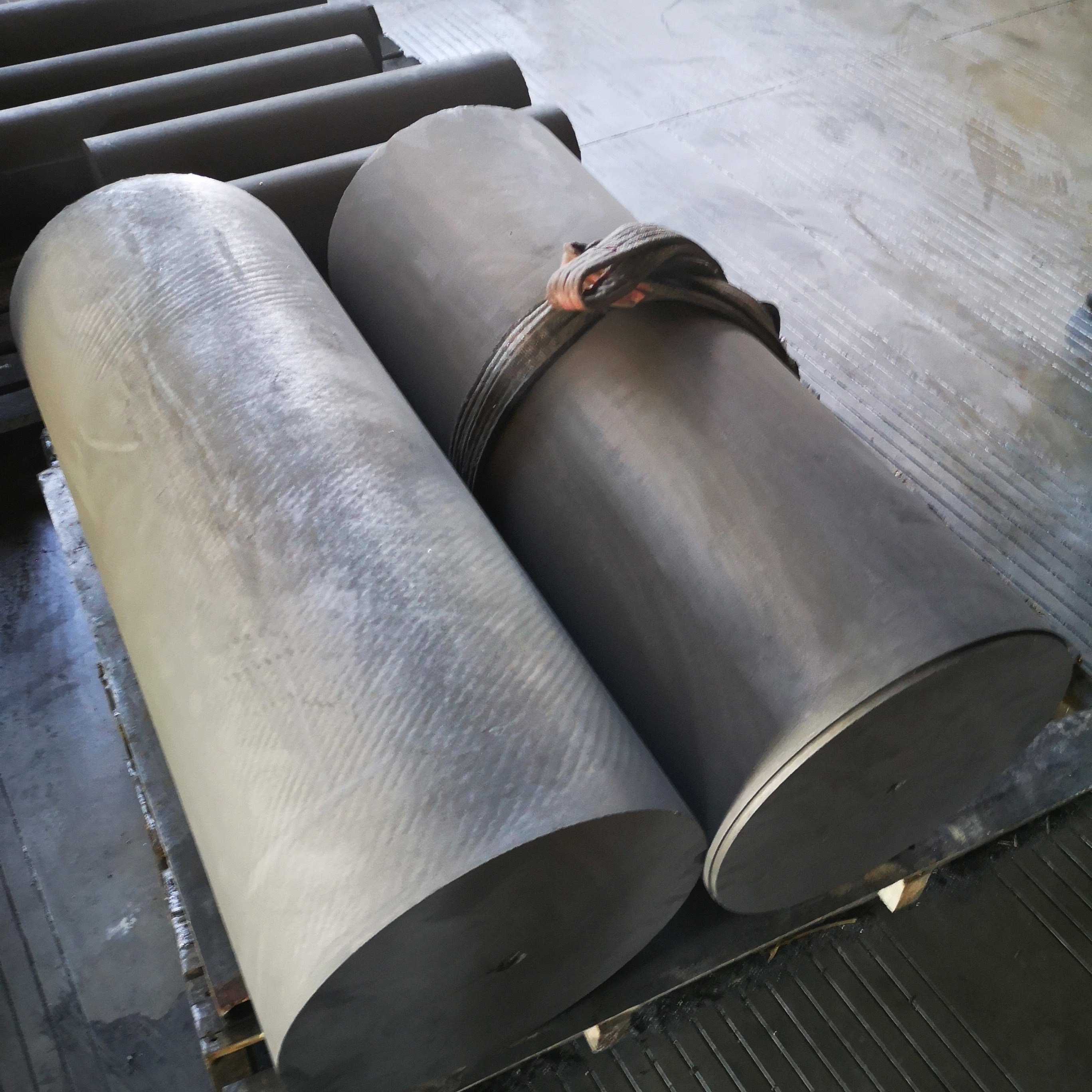

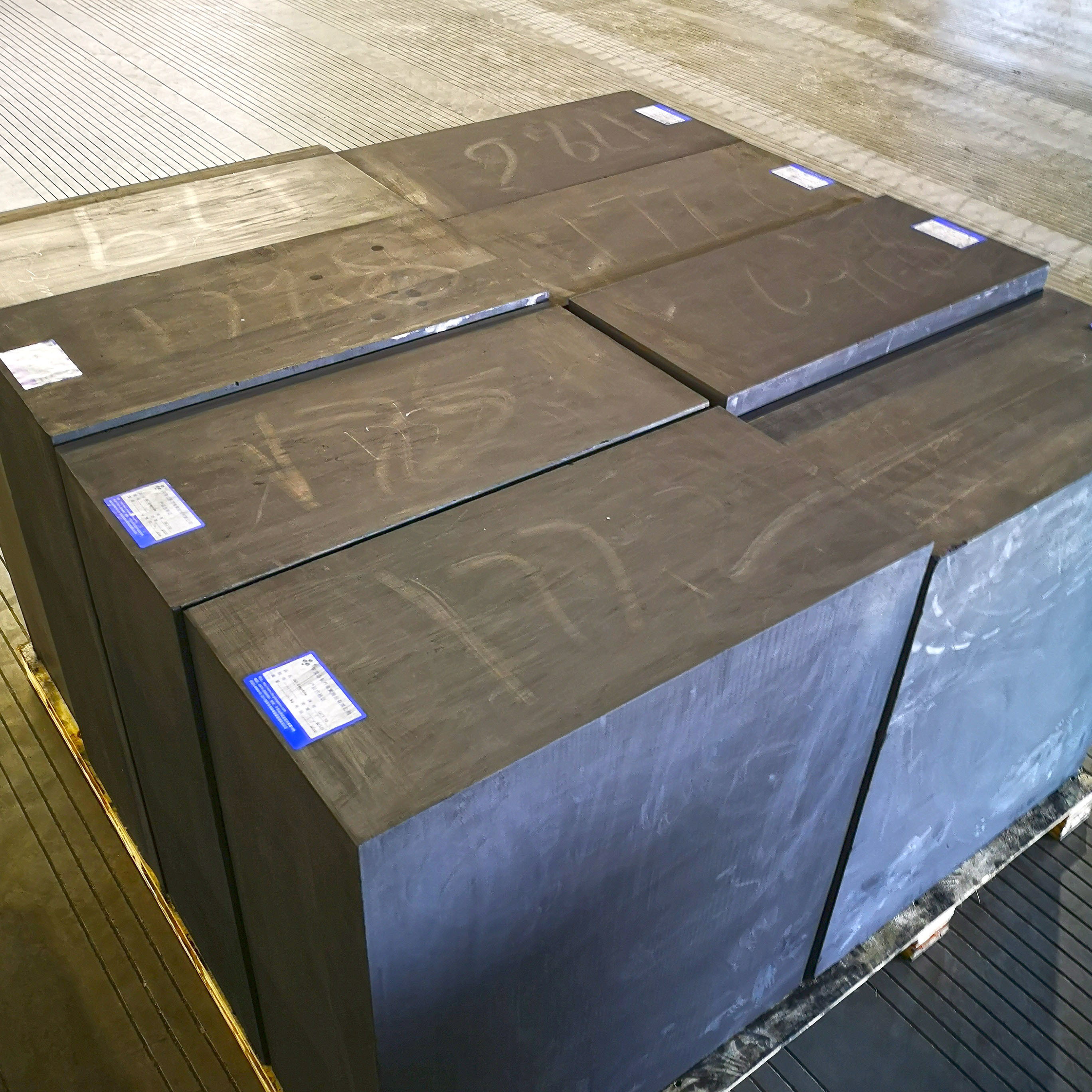

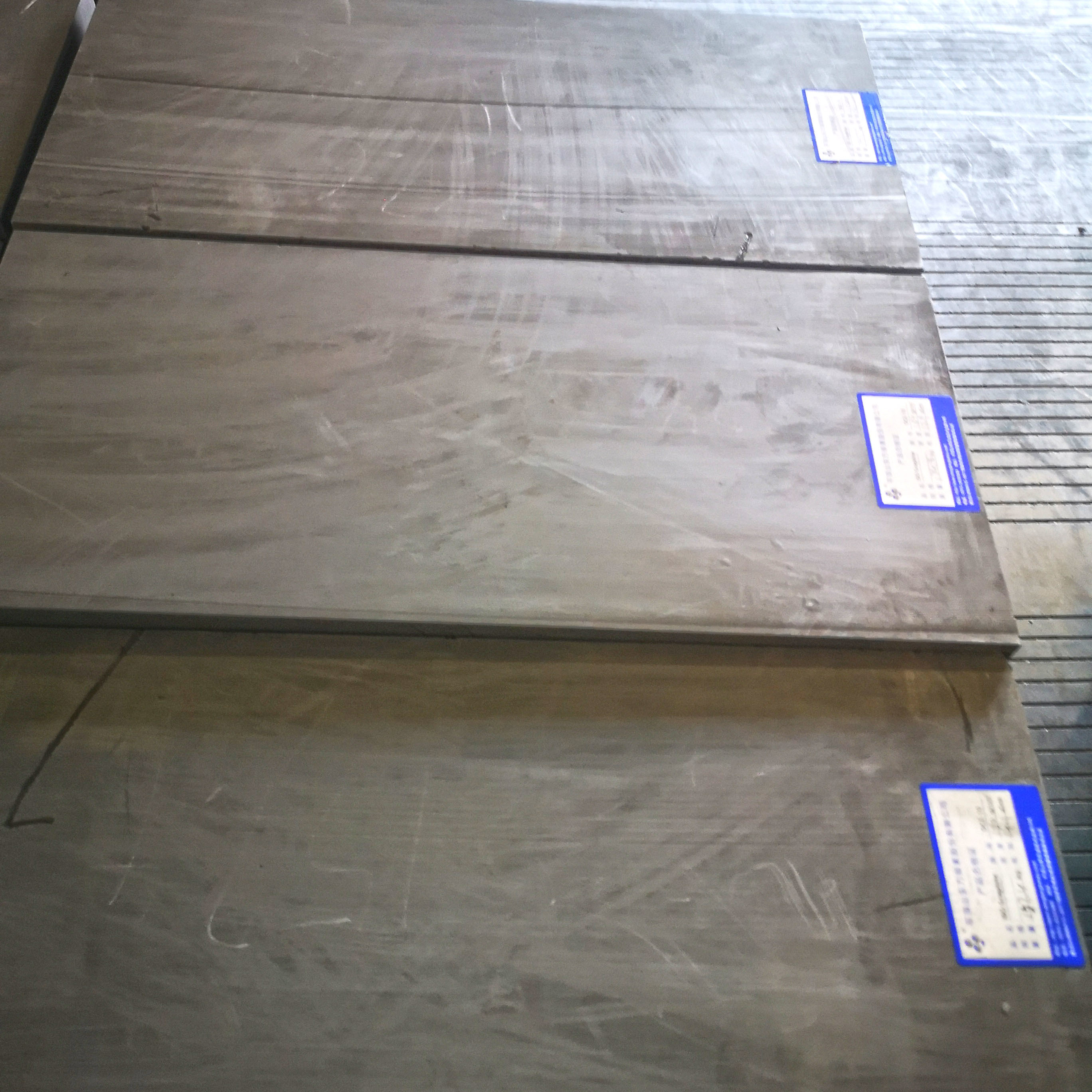

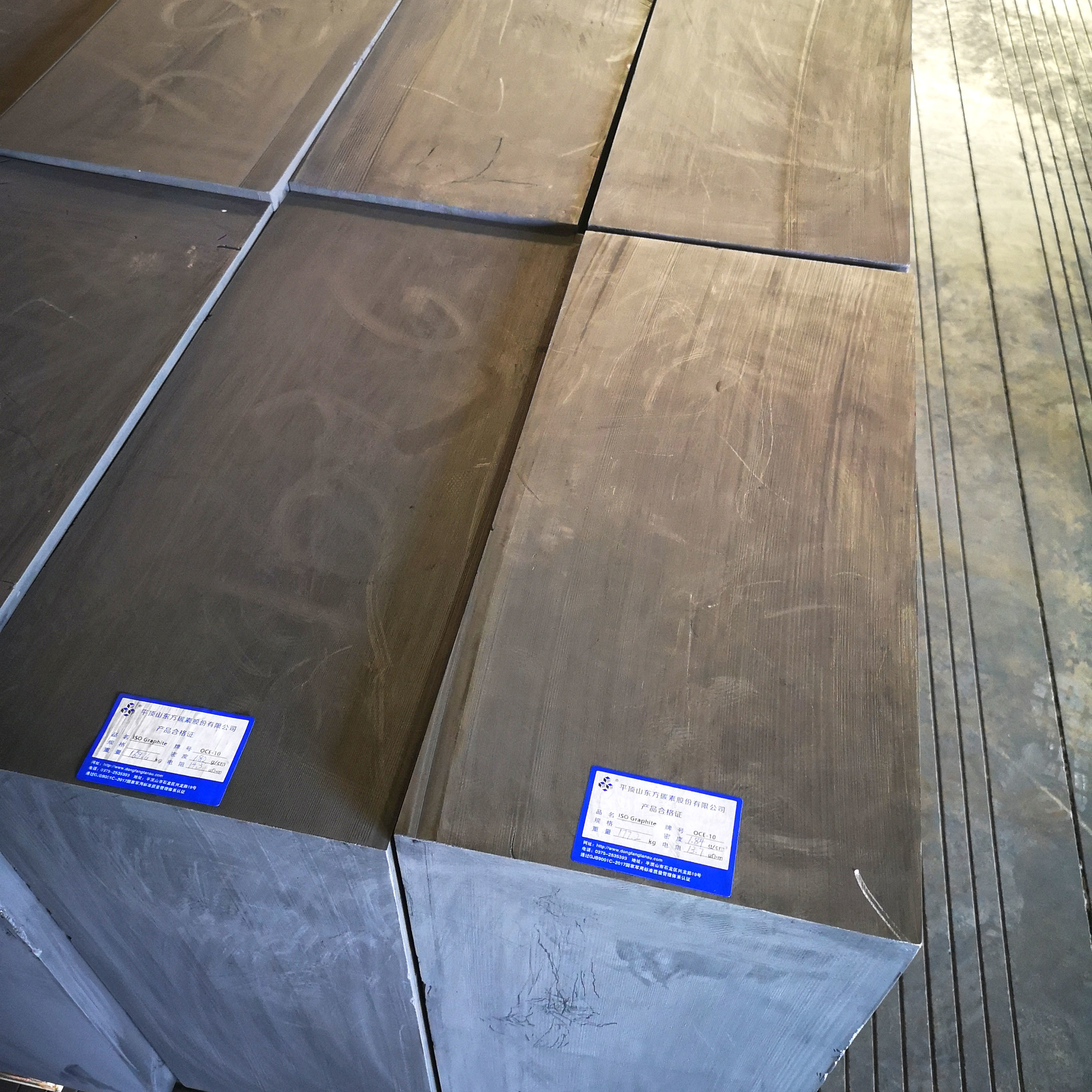

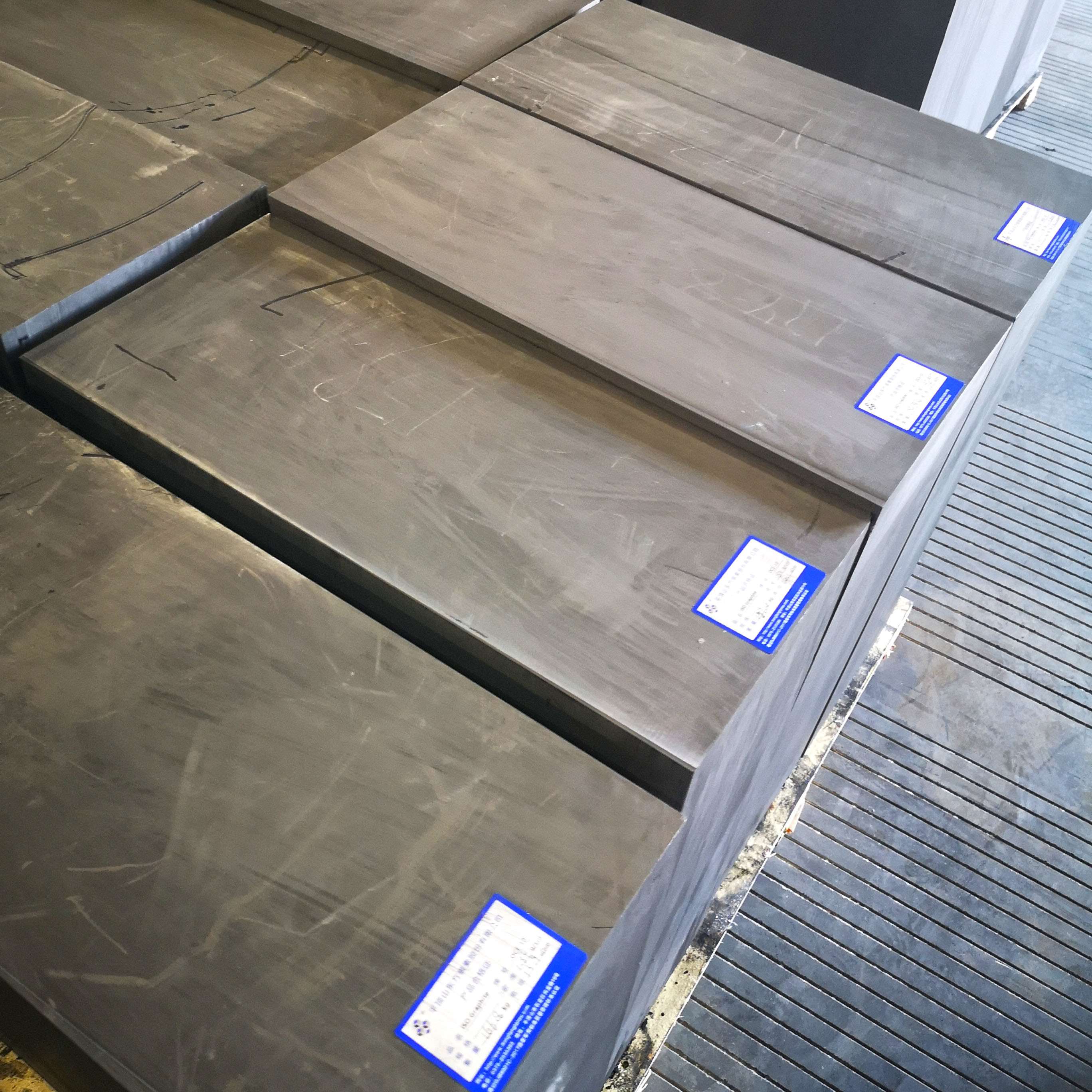

High Density Isostatic Graphite Block For Copper Continuous Casting And Moulding

Product Description

Isostatic Graphite has so many advantages compared with molded graphite or extruded graphite.Pingdingshan Oriental Carbon is winning our reputation wordwide because of High Quality product, Reasonable Price as well as considering after sales service.

Product name	OCY-4 Isostatic Graphite Block
Density	1.85 g/cc
Grain Size	12 um
Compress Strength	115 Mpa
Flexural Strength	55 Mpa
Electric Resistance	10-13 uΩ.m
Hardness	65 HSD

Advantages

1) Lower density and lighter weight compared with cooper materials.

2) Easier for the machining
3) Strong thermal shock resistance ability
4) Not easy to bend compared with cooper due to low thermal expansion
5) Fine grain size,good lubrication
6) High melting point,high temperature resistance,high anti-deformation ability

Detailed Images

Size Information

610510210/260	620520260/300	700350230	950650310	Grpahite Blocks
820420210/260/310	11501150290	1250600300	1300700320/350
1350800350	1400800260	1600800350	1650650350
2000700320	2200710540
φ130*280	φ130/140/150/160*500	φ160*650/900	φ180*850/900	Graphite Rods
φ200*900	φ220*900/1000	φ240*900	φ260*850/900
φ280*900	φ300*850/900	φ330*900	φ360/400/430*1000
φ460*1000/1050	φ500*1000/1050	φ550*1000/1100	φ600/650*1000
φ700*750	φ1100*700	Φ980/1100*900	φ1100*1100
